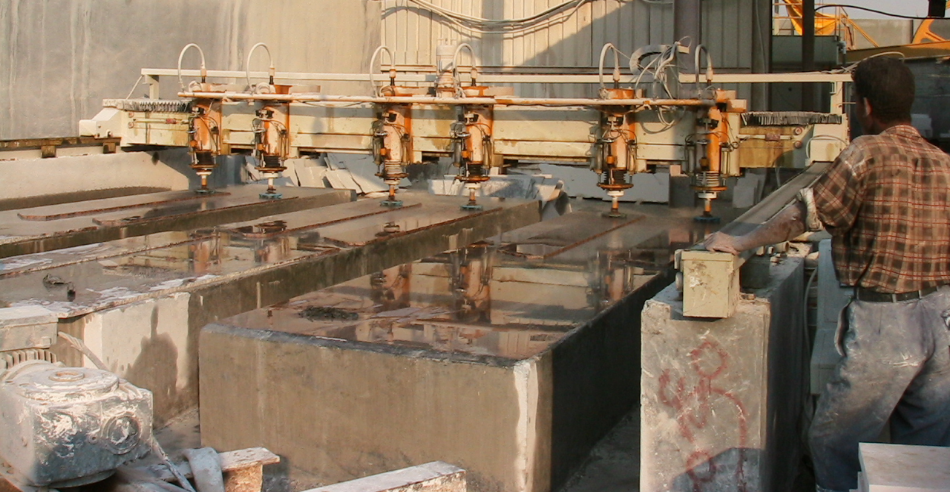

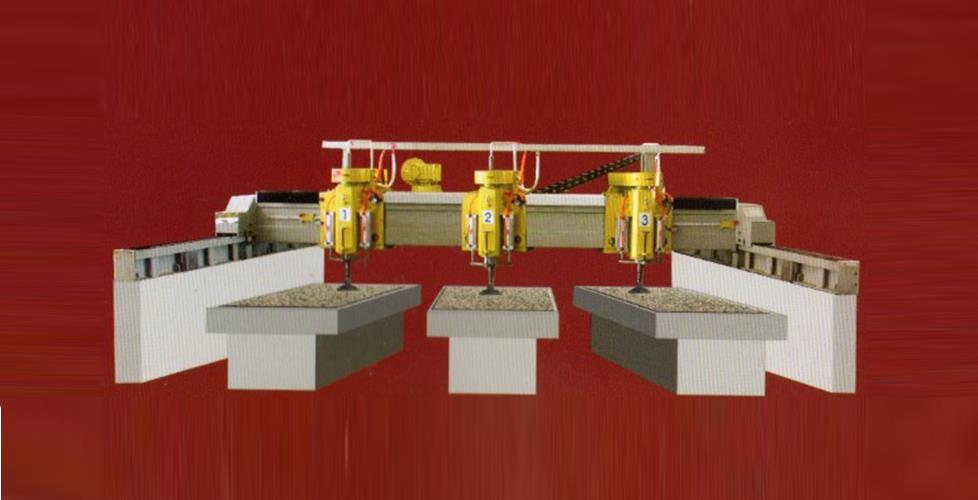

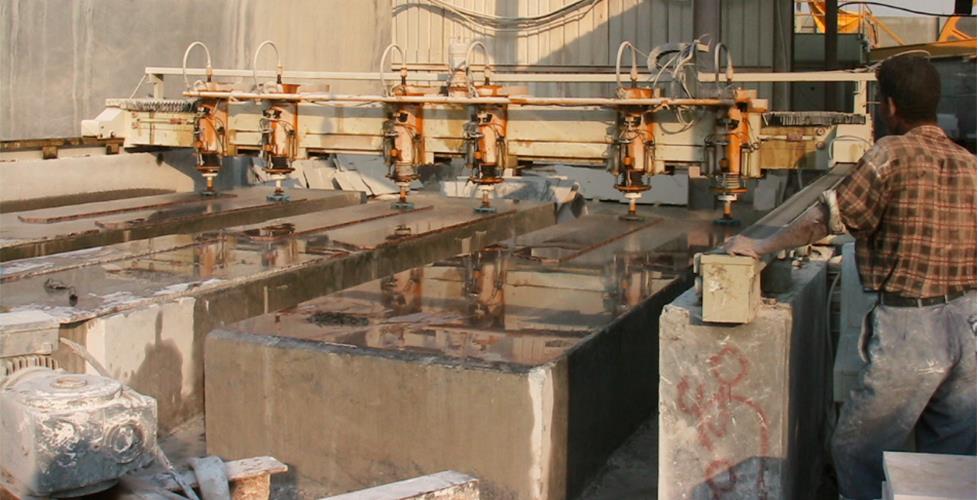

Bridge Type Multi-Head Automatic Polishing Machine

TYPE：stone polishing machineUSE: granite automatic polishingSIZE：5800×4700×2420mmTHE WEIGHT OF THE：5600kgCORE SELLING POINT：automatic single-head big slab polishing machineCORE COMPONENTS：motor, gearbox, bearing, gear, single-head, belt conveyor

Contact

Download

Introduction Parameters Display Video

Introduction:

It is invented for the intention to reduce the cost of human resource as well as to increase the stone polishing efficiency and glossiness.

Parameters:

1. Features:
1).It is invented for the intention to reduce the cost of human resource as well as to increase the stone polishing efficiency and glossiness.
2).Each head can work separately.
2.Technical Data of GHQM series are as follows:
Technical Data		3-head	4-head	5-head	6-head
Main Motor		5.5kw	5.5kw	5.5kw	5.5kw
Grinding wheel up-down stroke		120mm	120mm	120mm	120mm
Max. processing length		3200mm	3200mm	3200mm	3200mm
Max. processing width		1200mm-1500mm	1000mm-1200mm	800mm-1000mm	400mm-800mm
Min. processing thickness
No. of Plate can be polished		10mm	10mm	10mm	10mm
Dimension	Length(mm)	3	4	5	6
	Width(mm)	7360	8650	8650	8650
	Height(mm)	4700	4700	4700	4700
Whole weight (t)		2150	2150	2150	2150
Worktable	Height(mm)	6.2	6.2	6.2	7.2
(built by customer, material: concrete and stone )
workbench	Length(mm)	3200	3200	3200	3200

	Width(mm)	1310×2，2710×1	1310×2，2710×1	1910×2，910×1	1510×3

		600	600	600	600
