GHHW-1200/1400/1600 Infrared Fully Automatic Bridge Type Thick Slab Edge Cutting Machine
Contact
Download
Introduction Parameters Display Video
Introduction:
Parameters:
TYPE UNIT GHHW-1200 GHHW-1400 GHHW-1600
Blade diameter mm 600-1200 800-1400 1600
Max.vertical stroke mm 800 800 900
Max.working dimension(L×W×H) mm 2800×2000 3200×2000 3200×2000
Workbench rotating degree ° 0-90 0-90 0-90
Main motor power kw 22 22 30
Water consumption m³/h 4 4 4
Weight kg 6800 7000 7500
Dimension(L×W×H) mm 6000×4700×4200 6000×4700×4200 6000×4700×4200

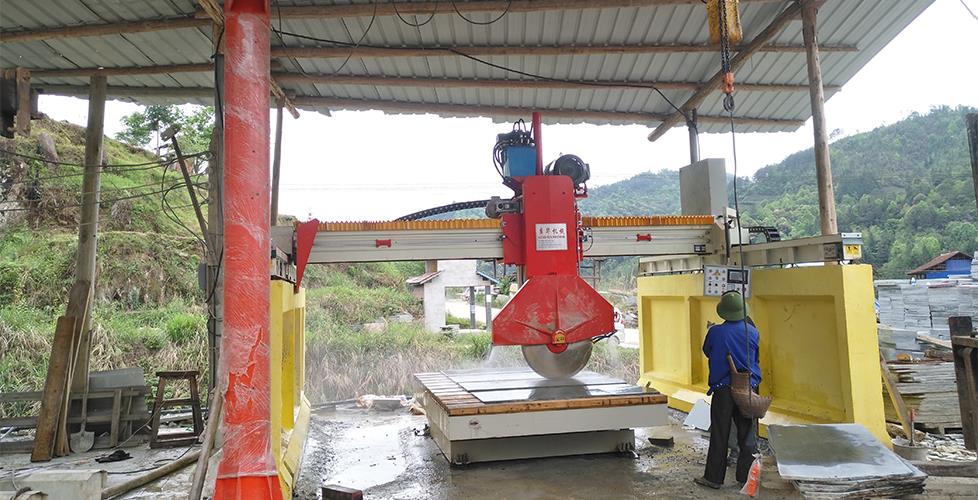

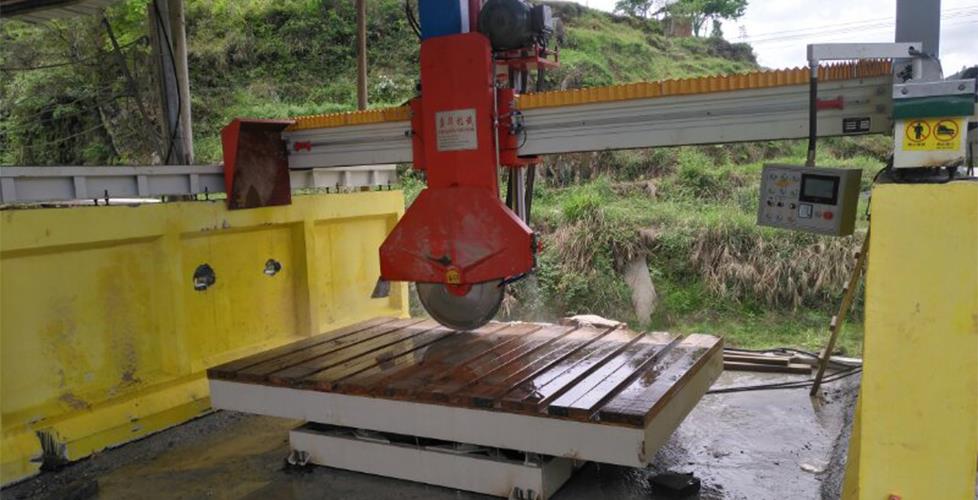

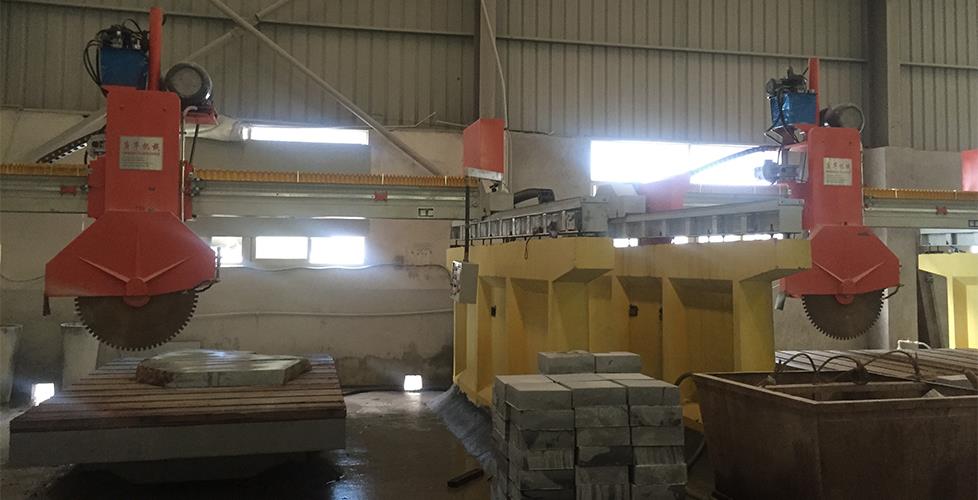

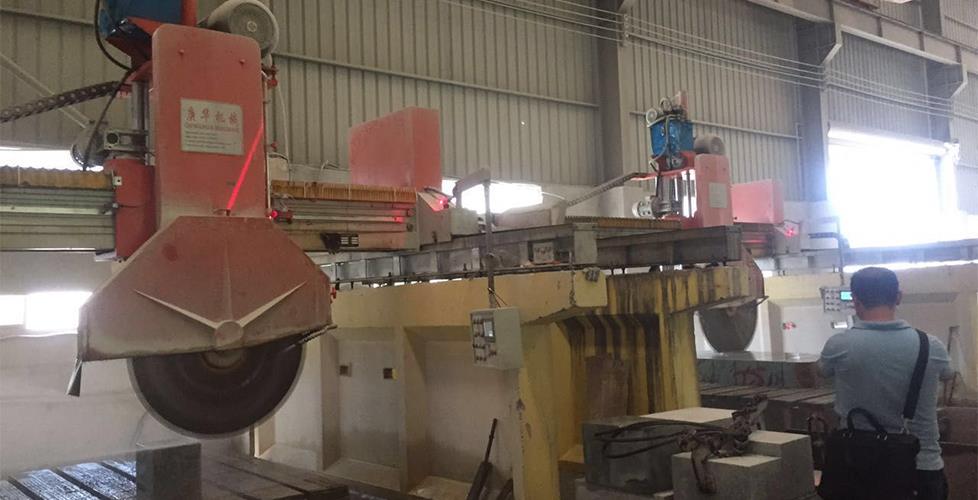

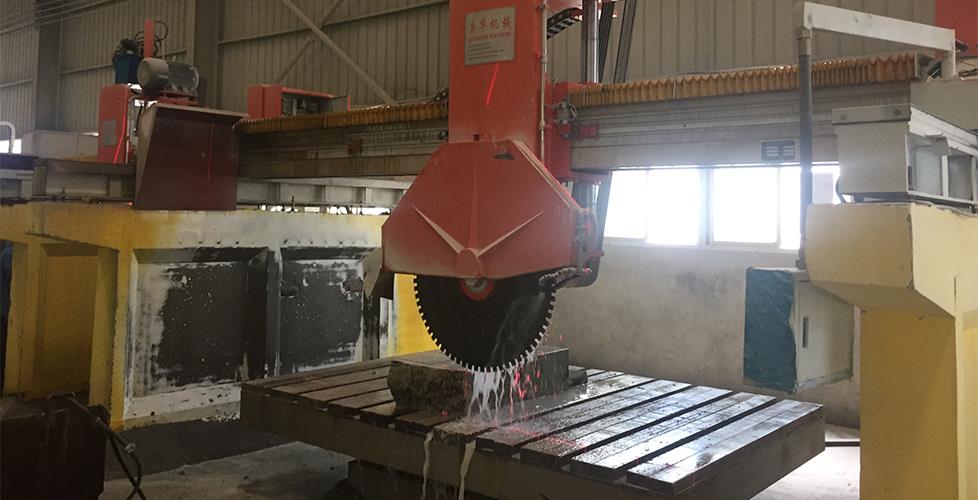

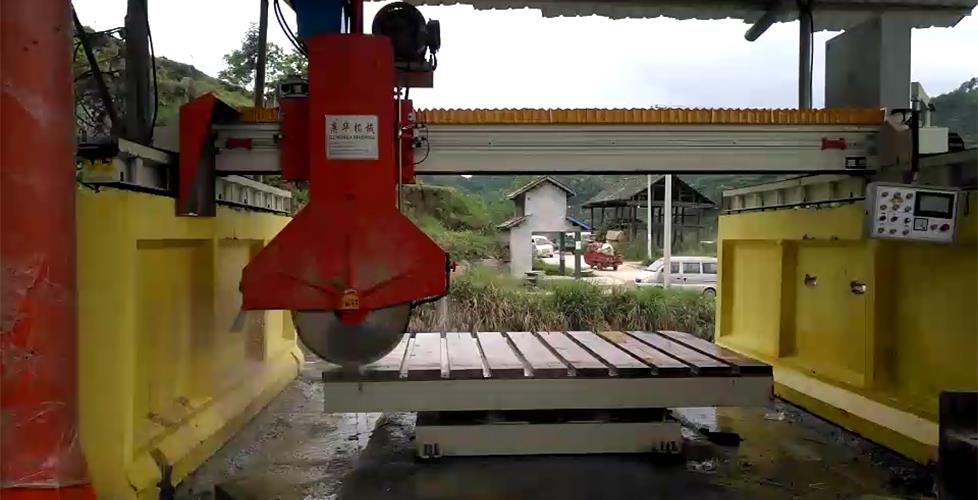

Display:
Video:
