About the production capacity , when cutting the marble,the machine can cut 200-300m pre day with the depth of 1.2M; When cutting granite, it can cut 100-200m with the depth of 1.2m per day, which is the high efficiency than all the present exploit methods(driller and wire saw). But the mining cost of our machine is just as high as half of that of diamond wire saw machine.

About the capacity, when cutting marbleone machine can cut about 10-11 sq m / hour,  when cutting granite, it can cut about 7-8 sq m /hour. About the blade, the blades can use 3-4 years

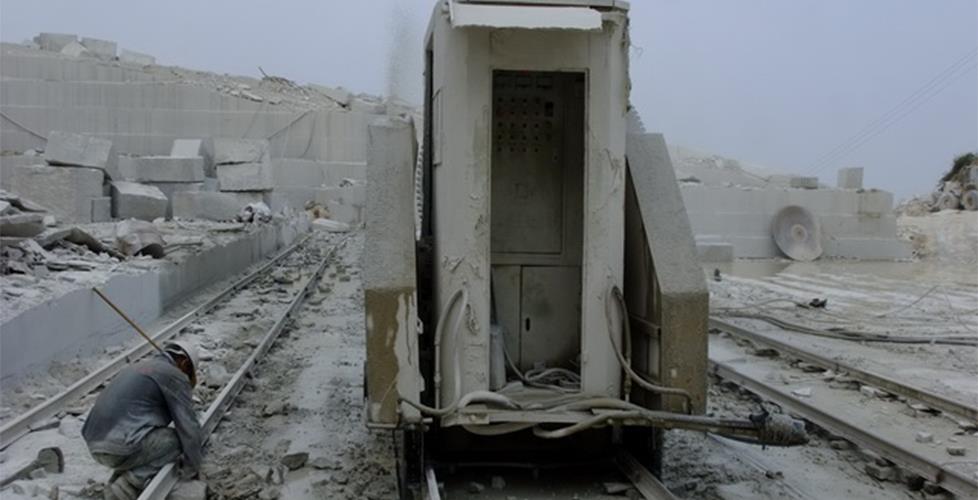

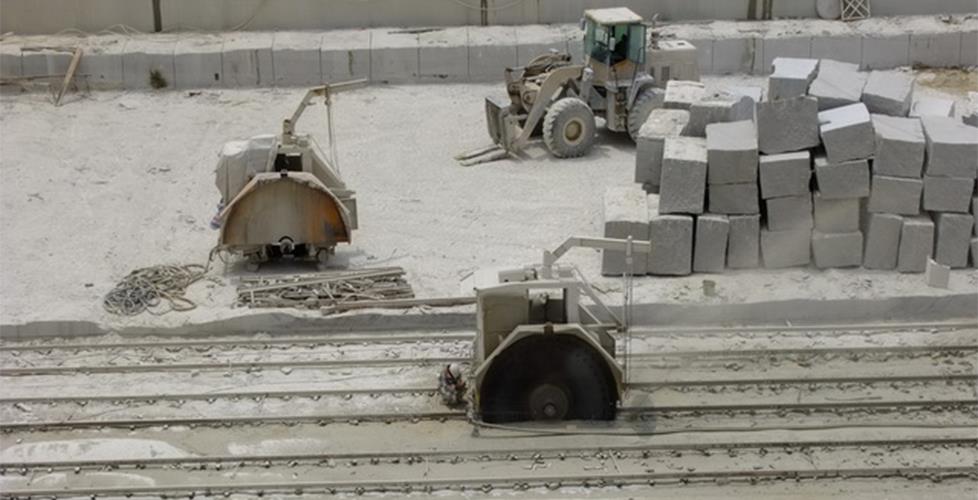

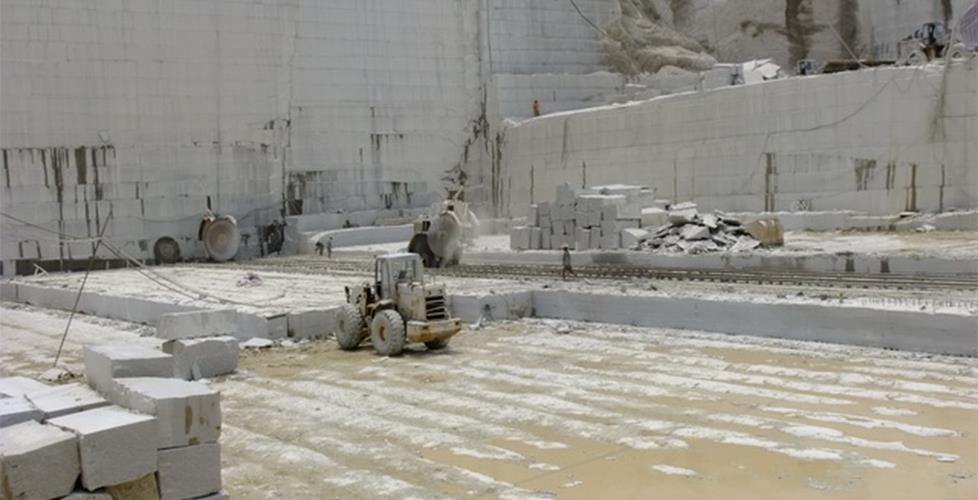

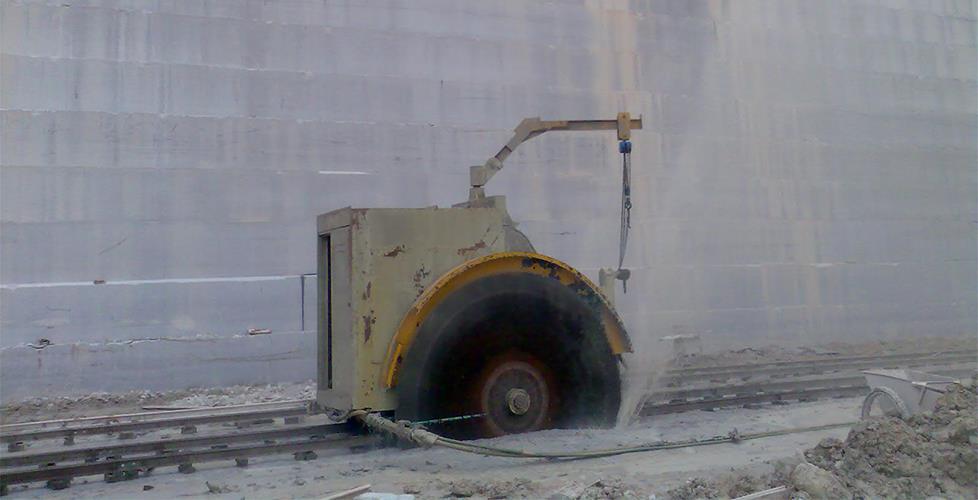

●This style machine is for the quarry. Mining marble, granite, sandstone and so on raw materials.
● The whole machine with compact conformation, it has small volume and high performance. It operated easily and conveniently.
●It can work in wide scope, process kinds of block in variety specifications with high speed cutting. It has lower cost and higher efficiency than other machines.
● It has low investment. It is safe to guarantee safe production. It can prevent the noise and dust pollution

1、Validity date of quotation: 30 days
2、Production time: after deposit received.
3、Payment: 30% deposit by T/T before production and the balance of
70% by T/T before delivery.
4、Delivery time: 30 days
5、Warranty : half a year

Name	Unit	GHKS-1550/2050
diameter of blade	mm	Ф2200mm－3000mm×2
max cutting depth	mm	780mm－1250mm
max cutting width	mm	1550mm-2050mm
power of main-drive	kw	37×2
power of lift motor	kw	1.5
power of route motor	kw	1.5×2
total power	kw	78.5
overall dimension(L×W×H)	mm	2720mm×1750mm×2650mm
