GHMB Gantry-type Multi-function Edge Polishing Machine
This machine process each kinds of linear-shaped and curved-shaped edge function. Exchanges the diameter of saw is 125, may carry on broach groove. Buys the turntable appendix in addition, may process the disc floor. This machine with oil-immersion up-place type sealed guide rail. It uses frequency c…
Download
Introduction:
This machine process each kinds of linear-shaped and curved-shaped edge function. Exchanges the diameter of saw is 125, may carry on broach groove. Buys the turntable appendix in addition, may process the disc floor. This machine with oil-immersion up-place type sealed guide rail. It uses frequency converter to conduct stepless speed adjustment. The vertical of the ram equipped with automatically and manual functions. By transverse stoke, load powerful, the stability is good, the service life is long, cost low status merit, the processing feeds speed between5.5~0.6m/min. May establish willfully for all kinds processing, by satisfies each kind of processing to need. This machine also designed has been automatic, manual double movement fluctuation, it enormous reduces worker’s labor in tensely and raise working efficiency.
Parameters:
| Max. cutting length | mm | 3000 |
| Max. cutting thickness | mm | 150 |
| Grinding disk diameter | mm | Ф160 |
| Main motor power | kw | 5.5（7.5） |
| Gross power | kw | 7.18（9.18） |
| Exhausted water | m³/h | 1.7 |
| Gross weight | kg | 2600 |
| Overall dimensions (L×W×H) | mm | 5100×960×2300 |

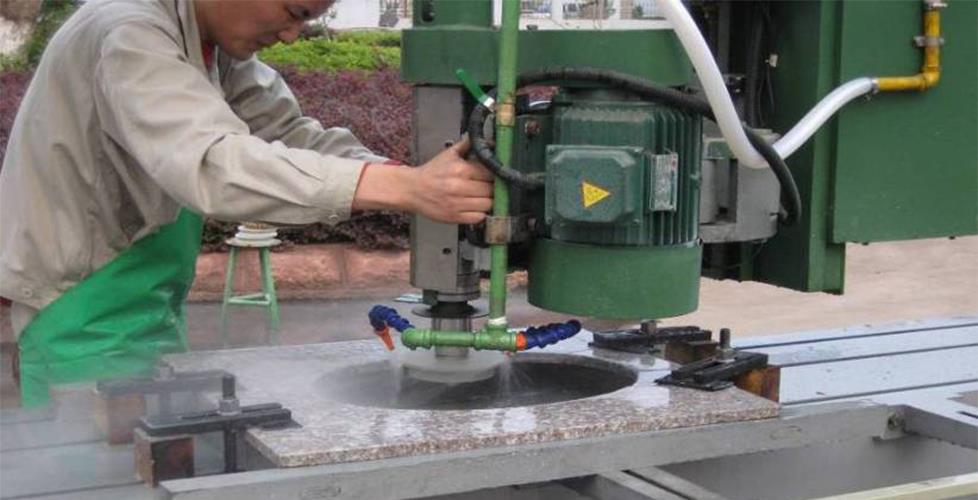

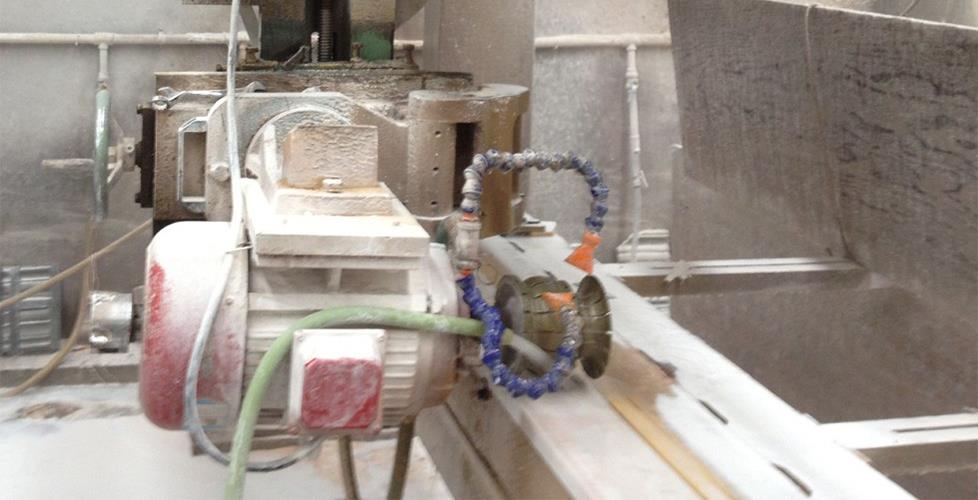

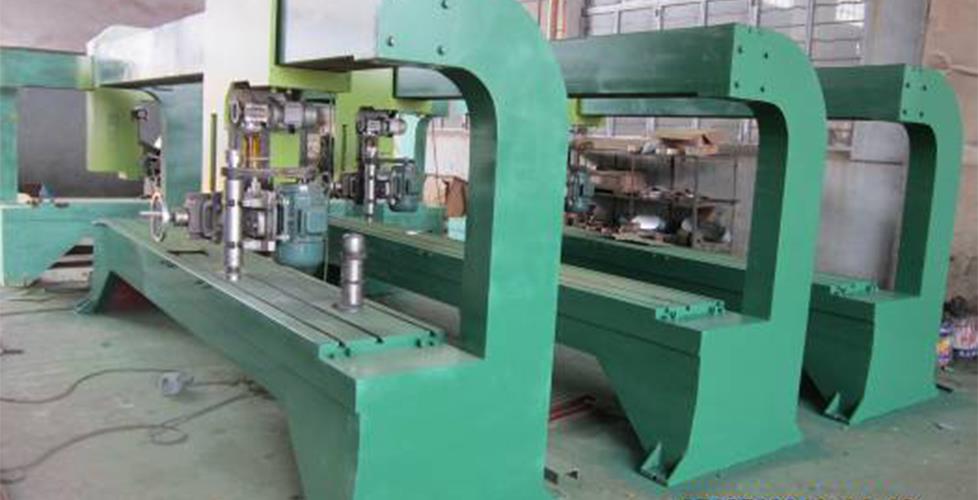

Display:
Video:
